Name : NEX 4 USB-C HUB.
: موزع NEX 4 بمنفذ USB-C
SKU : SGH-NEX4
Short Description :-
----------
4-In-1 USB-C HUB for Laptops and PCs, x2 USB-A 3.2 Gen-1 & x2 USB-C 3.2 Gen-1, Data Transfer rate 5 Gbps.
Long Description :-
----------

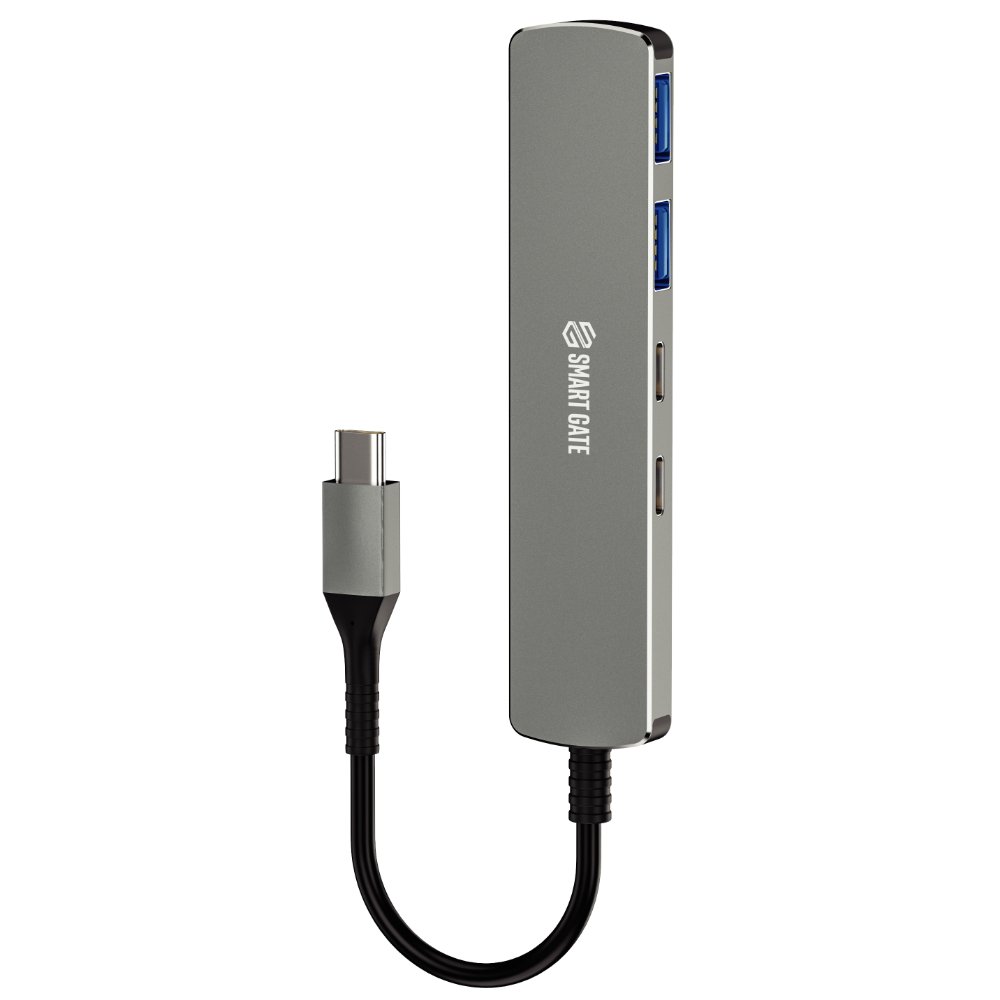

The SMART GATE SGH-NEX4 Laptop USB Hub is a compact multi-port expansion hub made for modern laptops, ultra-books, and USB-C devices. It expands a single USB-C connection into multiple useful ports, giving users faster access to external storage, keyboards, mice, flash drives, displays, and other daily accessories.
The hub supports USB 3.x SuperSpeed data transfer up to 5Gbps, while keeping backward compatibility with USB 2.0 devices. Depending on the final model configuration, the SGH-NEX4 series can also support HDMI video output up to 4K@30Hz, Gigabit Ethernet, SD/TF card reading, 3.5mm audio, and USB-C Power Delivery passthrough.
Its slim aluminum alloy shell helps with durability and passive heat dissipation, while the ABS inner structure and TPEE cable jacket improve daily handling strength and flexibility. The hub works without extra drivers on major operating systems including Windows, macOS, Linux, and ChromeOS.
Clean, portable, and work-ready — basically the “one USB-C port is not enough” solution.
Technical Specifications :-
----------
| Specification | Details |
| ---------------------- | --------------------------------------------------------- |
| Product Name | SMART GATE SGH-NEX4 Laptop USB Hub |
| SKU | SGH-NEX4 |
| Brand | SMART GATE |
| Product Type | USB-C Laptop Hub |
| Host Interface | USB-C Male |
| USB Standard | USB 3.x with USB 2.0 fallback |
| Downstream USB | USB-A 3.2 Gen1 up to 5Gbps / USB-C Data |
| Data Transfer Speed | Up to 5Gbps, model dependent |
| Video Output | Optional HDMI up to 4K@30Hz, model dependent |
| Ethernet | Optional 10/100/1000 Mbps, model dependent |
| Card Reader | Optional SD / TF Card Reader, model dependent |
| Audio | Optional 3.5mm Combo Jack, model dependent |
| Power Delivery | USB-C PD Passthrough, wattage model dependent |
| Compatibility | Windows 10/11, macOS 12+, Linux, ChromeOS |
| Installation | Driverless Plug & Play for core I/O |
| Shell Material | Aluminum 6063 / Aluminum Alloy |
| Inner Bracket Material | ABS |
| Cable Jacket Material | TPEE |
| Cooling Method | Passive heat dissipation through aluminum shell |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–90% RH, Non-Condensing |
| Storage Temperature | -20–60°C |
| Target Compliance | CE, FCC Part 15B, UKCA, RoHS, REACH |
| Warranty | 12 Months Limited Warranty |
| In the Box | USB Hub + USB-C Cable + Quick Start Guide + Warranty Card |
